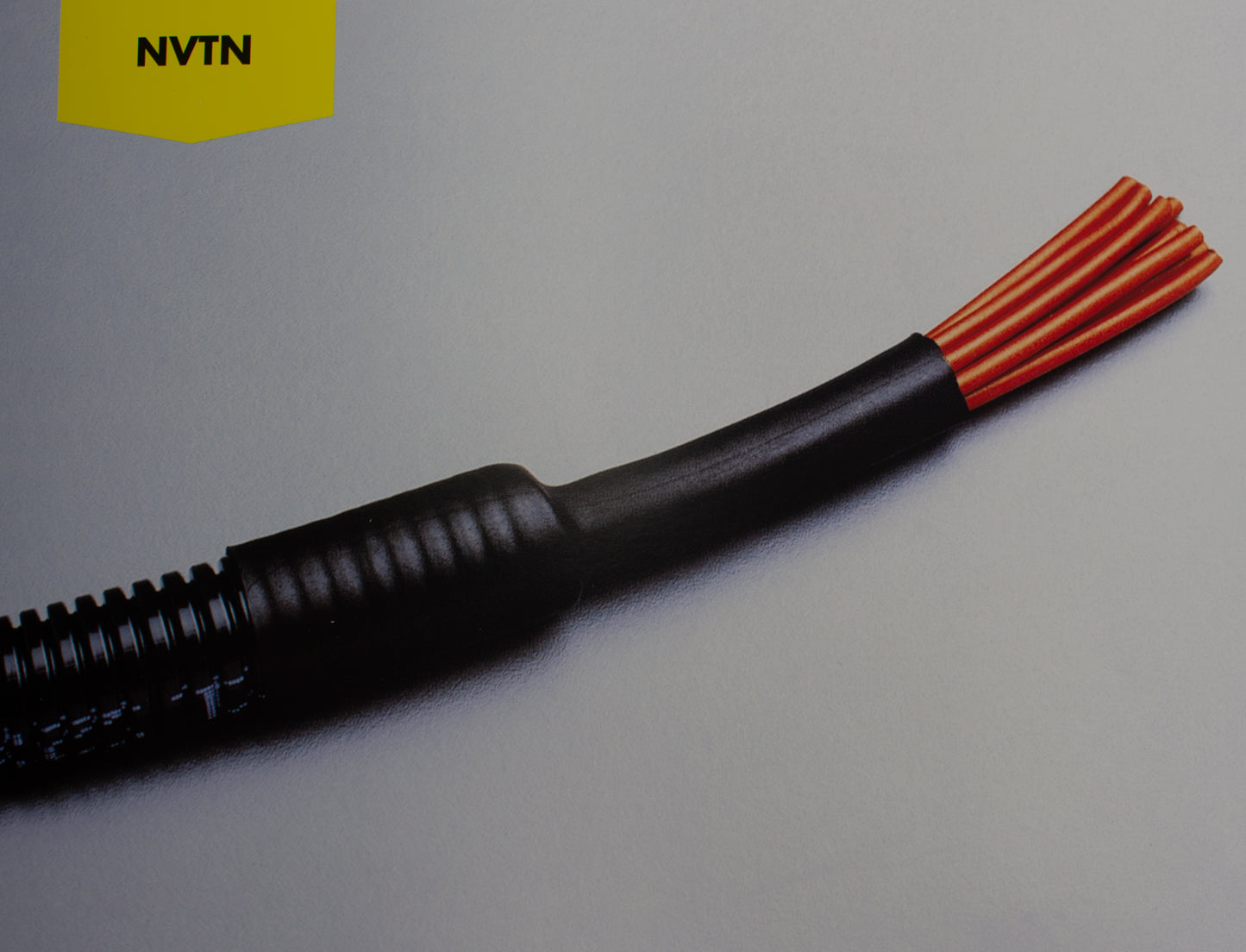

NVTN is a cross-linked flouroelastomer. The VITON¨ heat shrinkable sleeving will operate at very high continuous temperatures of up to 200°C . It is resistant to chemical attack, is self extinguishing, and will withstand impact and mechanical abuse.
Available in Black in a range of sizes up to 51mm diameter, NVTN complies with DEF.STAN 59-97 type 4A approval. VITON¨ is a trademark of Du Pont.
Physical Properties
Shrink ratio
2:1
Material
Cross-linked flouroelastomer
Flexibility
Semi flexible
Colours
Black
Tensile strength
8.4N/mm”
Ultimate elongation
250% min
Relative density
1.9 max.
Longitudinal change
20% max.
Thermal Properties
Operating temperature range
-40°C to +200
Shrinkage temperature
>175°C
Storage stability
Very good
Electrical Properties
Dielectric strength
7.5KV/mm
Chemical Properties
Corrosion
Non-corrosive
Flammability
Highly flame retarded
PRODUCT CODE REF.
Internal Diameter (mm)
Nominal wall thickness (mm) after heating (full recovery)
