NTRK

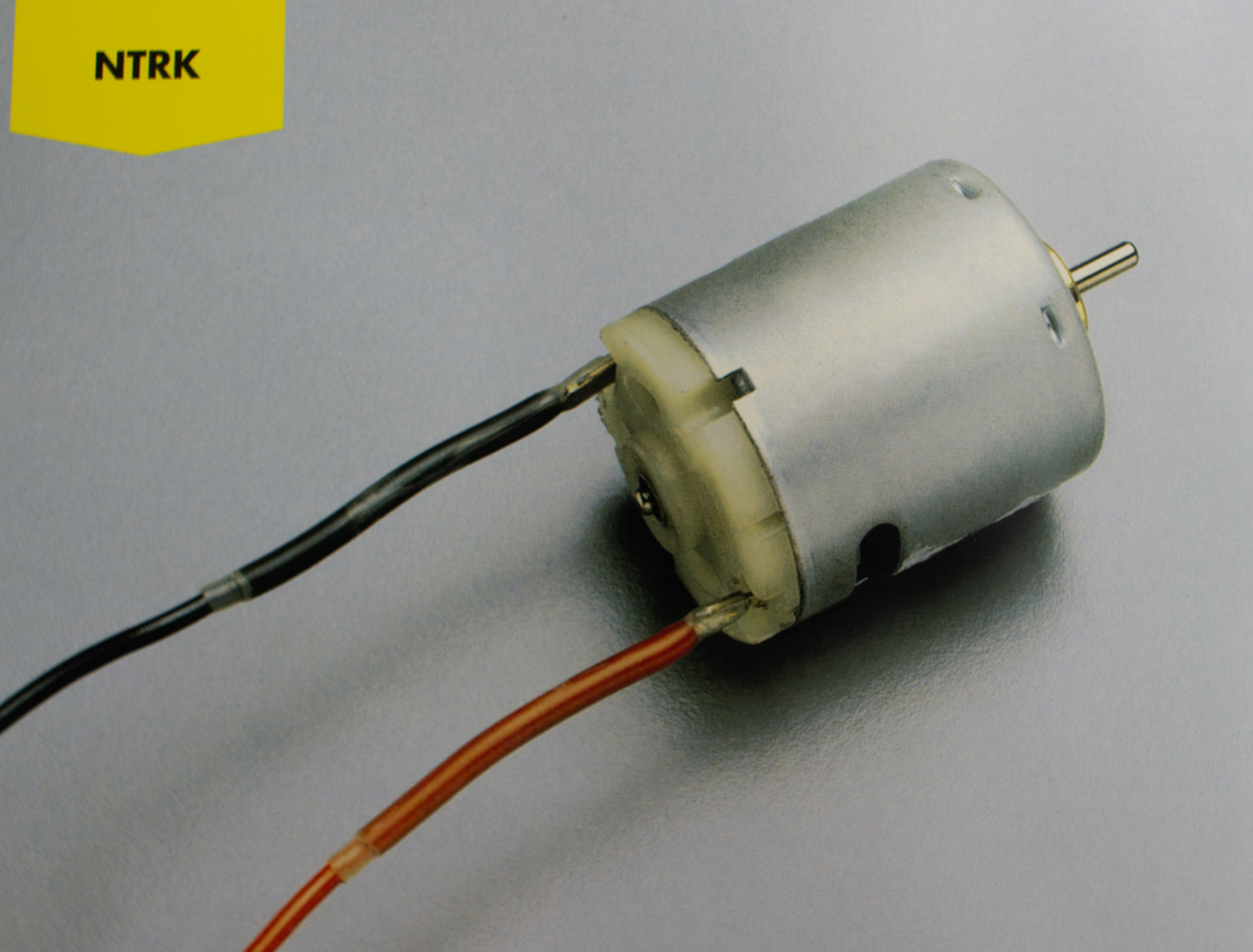

NTRK is a thin wall sleeving with an extremely good tensile strength making it ideal when a high degree of protection of wires or components is required. Manufactured from cross-linked Kynar¨, NTRK is transparent, non burning and possesses excellent resistance to fuels, solvents and chemicals.
It also has an operating range of -55¡C to + 175¡C and complies with MIL-1-23053/8, UL224 VW 1, CSA and Def Stan 59-97 type 3. Kynar¨ is a trade mark of Elf Atochem.
Physical Properties
Shrink ratio | 2:1 |
Material | (PVDF) cross-linked Kynar¨ |
Flexibility | Semi rigid |
Colours | Clear |
Tensile strength | 35,0N/mm” |
Ultimate elongation | 150% min |
Relative density | 1.8 max. |
Longitudinal change | 10% max. |
Thermal Properties
Operating temperature range | -55°C to + 175°C |
Shrinkage temperature | >175°C |
Storage stability | Excellent |
Electrical Properties
Dielectric strength | 30KV/mm |
Volume resistivity | 10″Òohm.cm. |
Chemical Properties
Water absorption | 0.1% (24h at 25°C) |
Corrosion | Non-corrosive |
Flammability | Self-extinguishing |
PRODUCT CODE REF. | Internal Diameter (mm) | Nominal wall thickness (mm) after heating (full recovery) | Standard reel size (mtrs) | |
---|---|---|---|---|
Expanded As supplied min. | Recovered after heating max. | |||
NTRK12 | 1.2 | 0.6 | 0.25 | 1.2 |
NTRK16 | 1.6 | 0.8 | 0.25 | 1.2 |
NTRK24 | 2.4 | 1.2 | 0.25 | 1.2 |
NTRK32 | 3.2 | 1.6 | 0.25 | 1.2 |
NTRK48 | 4.8 | 2.4 | 0.25 | 1.2 |
NTRK64 | 6.4 | 3.2 | 0.3 | 1.2 |
NTRK95 | 9.5 | 4.8 | 0.3 | 1.2 |
NTRK127 | 12.7 | 6.4 | 0.3 | 1.2 |
NTRK190 | 19 | 9.5 | 0.43 | 1.2 |
NTRK254 | 25.4 | 12.7 | 0.48 | 1.2 |
