NEC

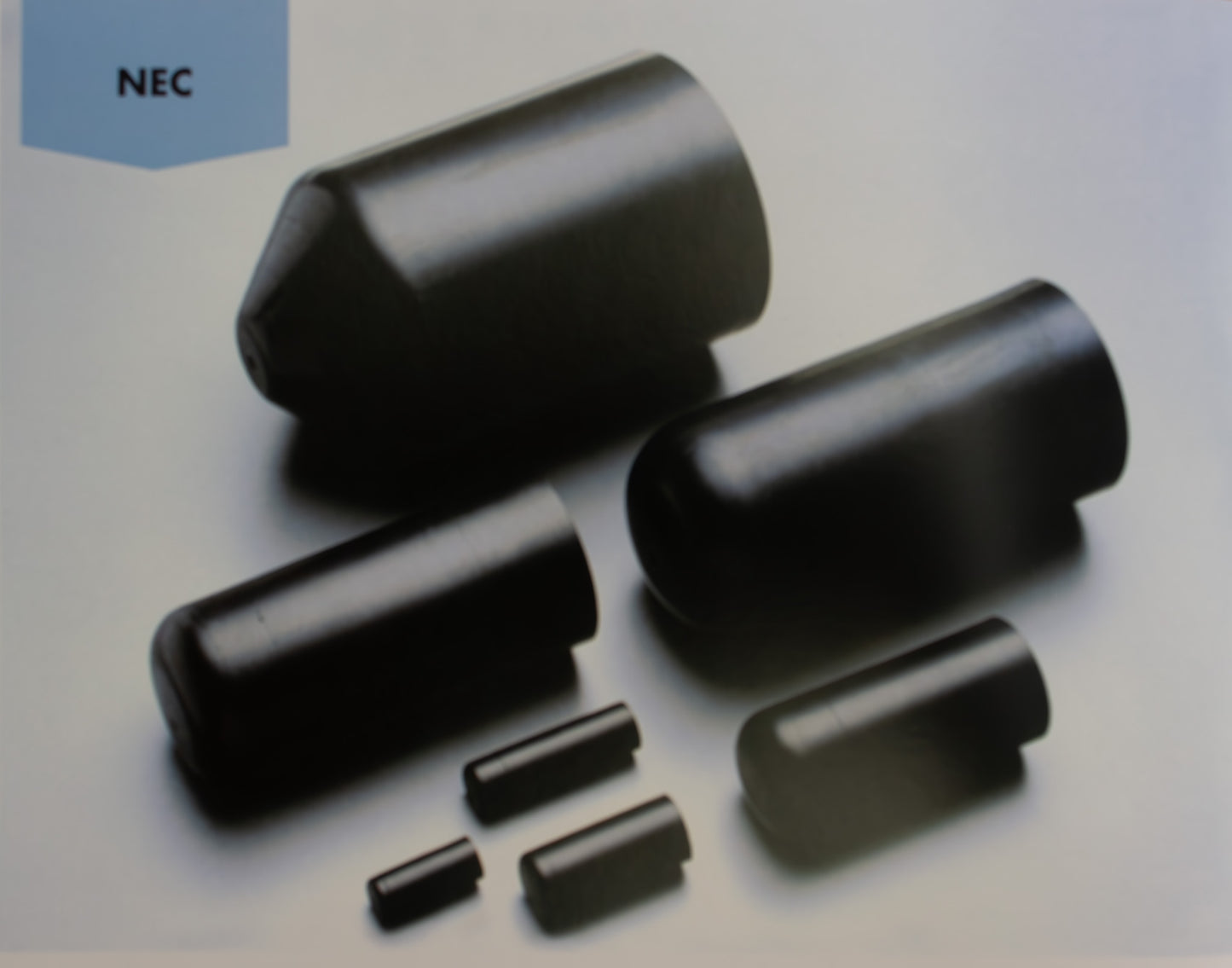

NEC are a range of polyolefin semi-rigid heat shrinkable end caps, which are coated internally with a hot melt adhesive. They offer a quick and very effective method of sealing against moisture in most types of communication and electrical cables. NEC are also resistant to corrosion, abrasion and mechanical damage.
Physical Properties
Shrink ratio | >2:1 |
Material | Cross-linked polyolefin with adhesive lining |
Flexibility | Semi rigid |
Colours | Black |
Tensile strength | 14.0N/mm” |
Ultimate elongation | 300% min |
Relative density | 1.1 max. |
Thermal Properties
Operating temperature range | -55°C to + 105°C |
Shrinkage temperature | >135°C |
Storage stability | Very good |
Electrical Properties
Dielectric strength | 11KV/mm |
Chemical Properties
Water absorption | 0.5% (24h at 25°C) |
Corrosion | Non-corrosive |
Flammability | Adhesive not self-extinguishing |
- Does not apply to clear variant
PRODUCT CODE REF. | Internal Diameter (mm) | Nominal wall thickness (mm) after heating (full recovery) | Standard reel size (mtrs) | |
---|---|---|---|---|
Expanded As supplied min. | Recovered after heating max. | |||
NEC15001 | 10 | 4.5 | 2.2 | 35 |
NEC15002 | 14 | 6 | 2.2 | 58 |
NEC15003 | 17 | 9 | 2.5 | 52 |
NEC15004 | 37 | 17.5 | 2.8 | 98 |
NEC15005 | 52 | 25 | 3.5 | 140 |
NEC15006 | 100 | 46 | 3.8 | 176 |
NEC15016 | 70 | 35 | 3.8 | 165 |
