NCPM

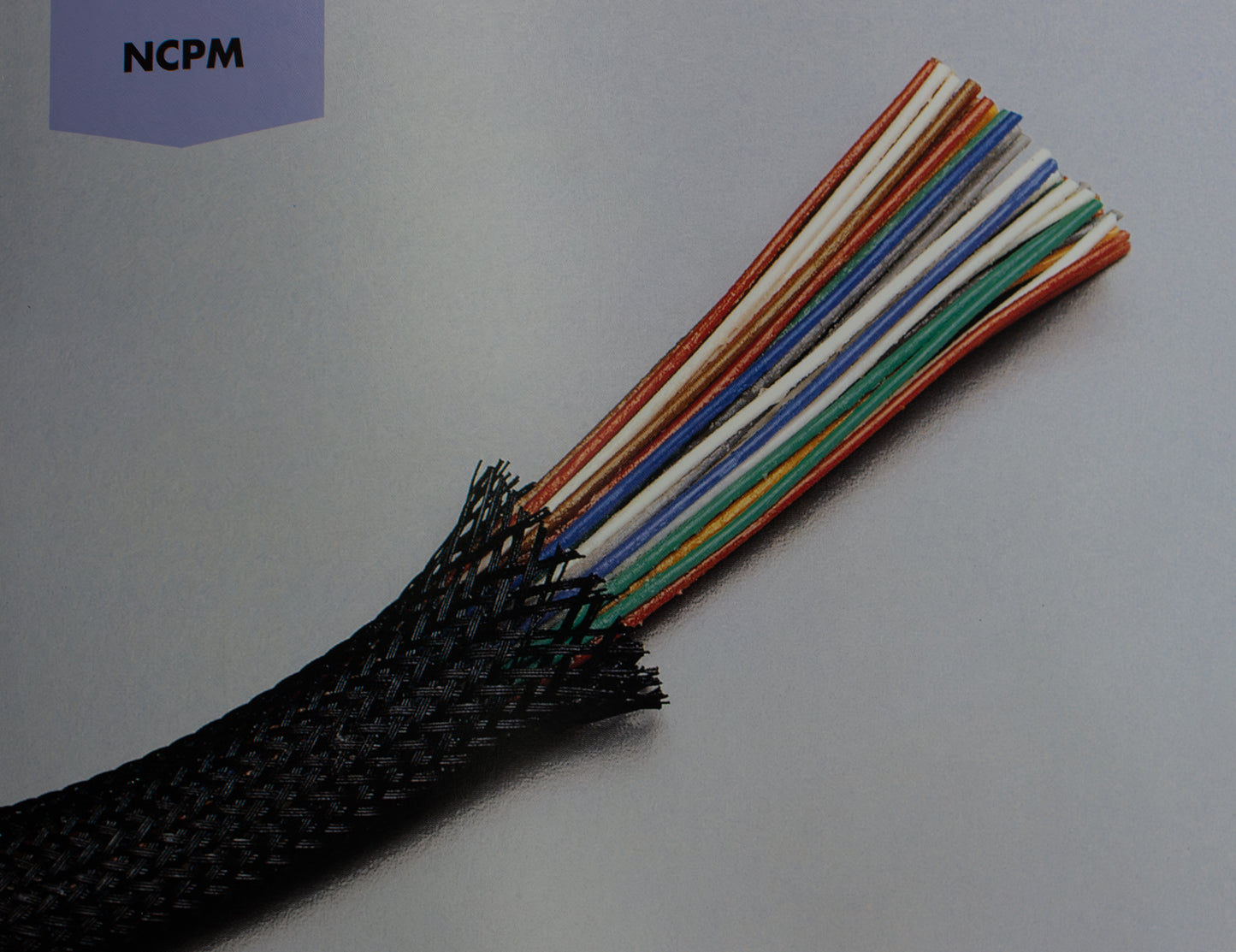

NCPM is an expandable braid cable jacket, manufactured in monofilament polyester. Formulated to add mechanical protection for groups of cables, it is easily fitted by pushing back the jacket over cable bundles. On compression, NCPM diameter expands over the bundles and retracts to hold the cables neatly in place. The braiding material is resistant to attack from most solvents, heat up to 150¡C and is self extinguishing.
Physical Properties
Expansion ratio | up to 3:1 |
Material | Monofilament polyester |
Flexibility | Very flexible |
Colours | Black, Grey |
Resistance to abrasion | Very good |
Thermal Properties
Operating temperature range | -50°C to + 150°C |
Maximum peaking temperature |
+220°C |
Chemical Properties
Flammability | Self extinguishing |
Moisture attack | Resistant |
Fungus attack | Resistant |
Solvent attack | Resistant to most solvents |
PRODUCT CODE REF. | Nominal Size Range (mm.) | Nominal Roll Length (mtrs.) |
---|---|---|
NCPM4 | 2 7 | 100 |
NCPM5 | 3 9 | 100 |
NCPM10 | 7 15 | 100 |
NCPM15 | 10 20 | 50 |
NCPM20 | 14 26 | 25 |
NCPM25 | 18 34 | 25 |
NCPM30 | 20 40 | 25 |
NCPM40 | 30 50 | 25 |
NCPM50 | 40 66 | 25 |
